2.4GHz Miniaturized Nonlinear Detector Counter Terrorism Equipment

Name: 24GHz Miniaturized Nonlinear Detector Counter Terrorism Equipment
Brand: Topsky
Price: 9800 USD

Brand Name : Topsky

Model Number : LT-802

MOQ : 1

Price : USD9800-12000/set

Payment Terms : T/T

Supply Ability : 500pcs / per month

Delivery Time : 6 days

Product working f : 2.4GHz

Frequency range : 2.404 GHz -2.472GHz

Receiving 2nd~3rdHarmonic Range : GHz-4.944GHz ,4.808 7.212 GHz-7.416GHz

Pulse mode transmit power (maximum) : 0~1 W

Receiving sensitivity : dBm ≤-125

Receiving Dynamic Adjustable Range : 30 dB

Battery Working T : 2H

Battery type : replaceable lithium battery, standby 4 H

Charge time : Fast charging 2.5 H/ blocks

Detection distance : GPS module: mm 400-500 Cell: mm 150-220 SIM card:

Product size : 365(L )*110(W)*65mm (H)

Outer box dimensions : 580(L )*300(W)*150mm (H)

Product weight : 0.8 kg

Working temperature : -20ºC~45ºC

Working humidity : No more than 85%, no condensate

Contact Now

Introduction

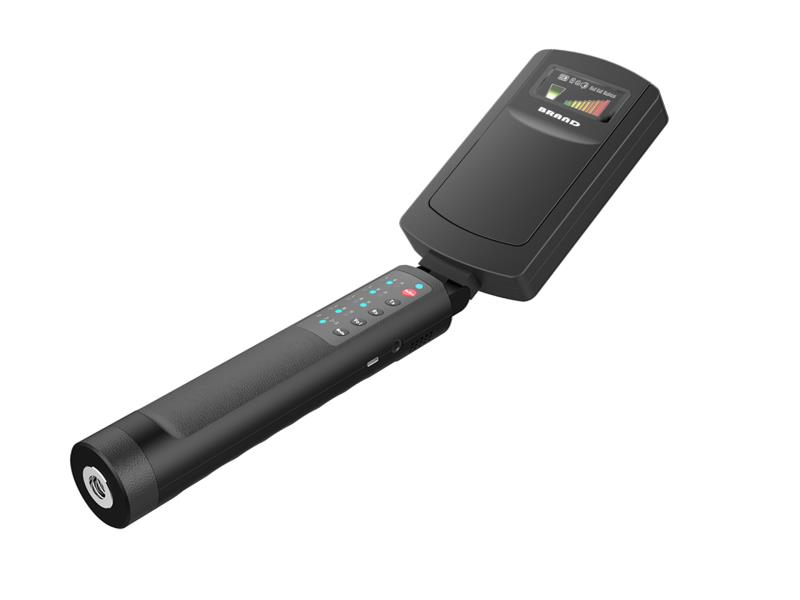

A miniaturized non-linear node detector that detects hidden walls and walls

Electronic equipment in floors, ceilings, lamps, furniture or containers, regardless of whether they are

Whether to send signals, whether to switch machines, and through display, sound and vibration and other ways to enter

Alarm, so that the detector can find the target device, protect the organization and personal privacy.

Performance indicators:

Parameters	Technical indicators
Product working frequency	2.4 GHz
Frequency range	2.404 GHz -2.472GHz
Receiving 2^nd~3^rdHarmonic Range	GHz-4.944GHz ,4.808 7.212 GHz-7.416GHz
Pulse mode transmit power (maximum)	0~1 W
Receiving sensitivity	dBm ≤-125
Receiving Dynamic Adjustable Range	30 dB
Battery Working Time in Maximum Power Pulse Mode	2H
Battery type	replaceable lithium battery, standby 4 H
Charge time	Fast charging 2.5 H/ blocks
Interactive interface	LED shows the intensity of the received harmonic signal
	Support for audio prompts, connected headphones
	Support Vibration Tips
Detection distance	GPS module: mm 400-500 Cell: mm 150-220 SIM card: mm 25-33
Product size	365(L )110(W)65mm (H)
Outer box dimensions	580(L )300(W)150mm (H)
Product weight	0.8 kg
Working temperature	-20℃~45℃
Working humidity	No more than 85%, no condensate
